Circuits for ventilation and anesthesia are indicated for mechanical ventilation and anesthesia procedures
RMS: 80435140055 (PRT)
The silicone breathing circuits manufactured by Protec have a biocompatibility certificate (ISO 10993). They are made up of connectors, condensation water trap, proximal tube and silicone corrugated tubes with an elliptical outer part and a smooth inner part. The standardization of connections and accessories ensures full compatibility with the most diverse existing equipment on the market. *Optionally, it can be used together with the heated humidification chamber
Este produto é compatível com equipamentos GE.
RMS: 80435140055 (PRT)

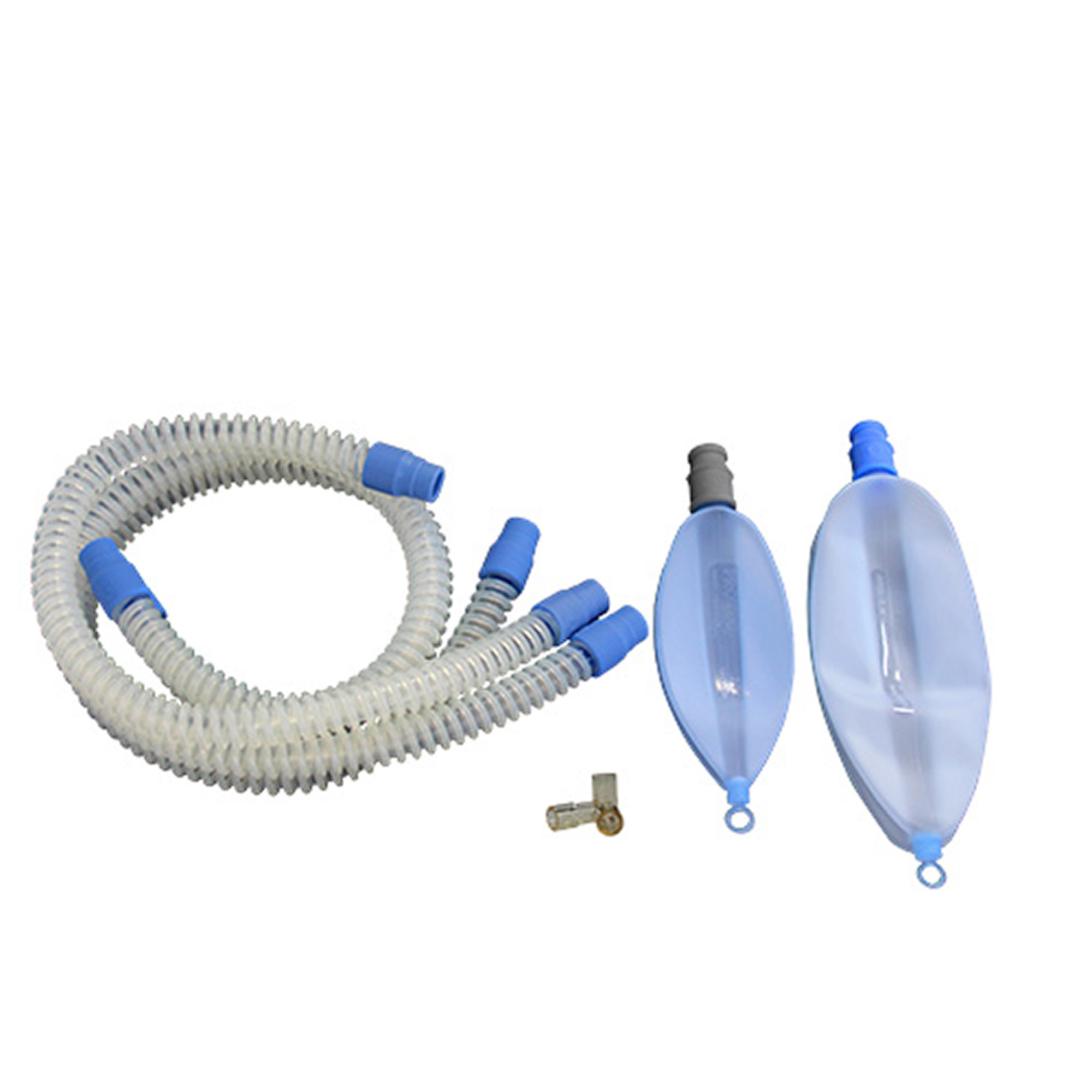

006994- CIRCUITO PACIENTE ANESTESIA SIL ADULTO GE SIMILAR
Corrugated Tube
Material: silicone
Tip color: Blue
Tube hardness: 60±5 shore A
Tip Hardness: 40± shore A
Available Lengths: 15 x 400mm / 15 x 600mm / 15 x 800mm / 15 x 1200mm / 22 x 400mm / 22 x 600mm / 22 x 1200mm
“Y” connectors
Material: polisulfona (PSU)
Connection: 15 (Female) according to ABNT 10335 standard
Plug
Material: Silicone
Connectors
Material: Polycarbonate (PC)
Responsável por conduzir um fluxo de gases, os circuitos ventilatórios, também conhecidos como Circuito Paciente, são utilizados nos “respiradores pulmonares”, ventiladores de UTI e aparelhos de anestesia. São eles que conduzem os suprimentos de fluxo ventilatório e gases anestésicos para o paciente, garantindo assim a manutenção respiratória durante o procedimento, seja ele de curto longo prazo.
